Home → Models → ZX500RR
supersport

ZX500RR

ZXMOTO

Official Site ↗
ZX500RR 1
ZX500RR 2

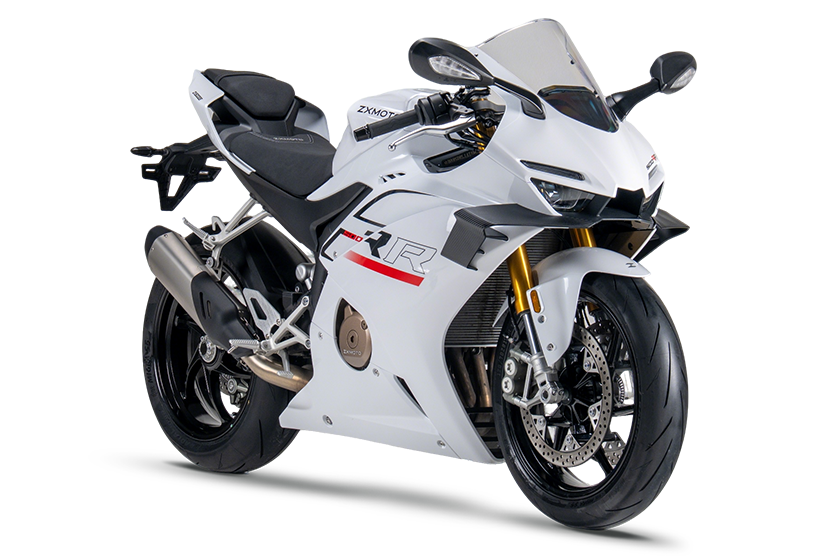

ZX500RR 3

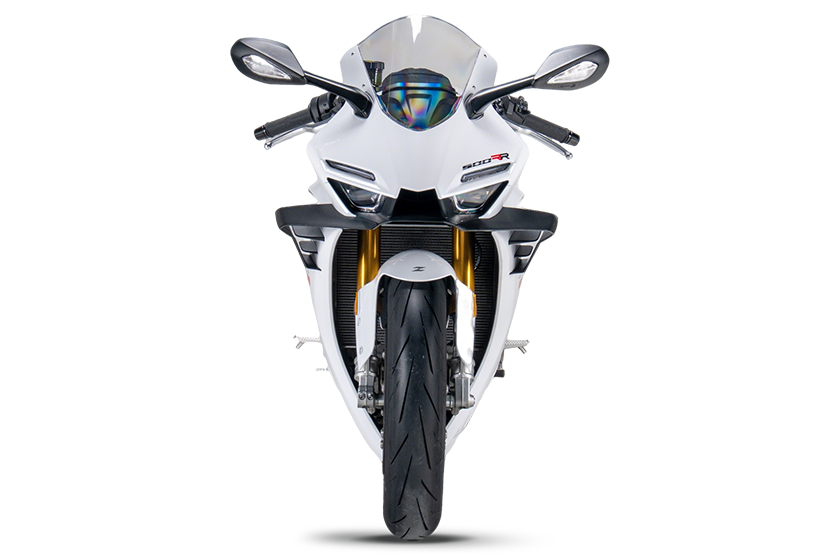

ZX500RR 4

Overview

The ZX500RR is ZXMOTO's flagship 500cc four-cylinder supersport. With a 470cc inline-four tuned to deliver 62 kW at a screaming 13,500 rpm, the 500RR brings genuine racing DNA to the middleweight class. A single-sided swingarm, dual 300mm floating discs with four-piston TAISKO calipers and a kerb weight of just 168 kg make it one of the most aggressive packages in its segment.

Highlights

  • 470cc inline-four, DOHC, 16-valve, liquid-cooled
  • 62 kW (83 hp) @ 13,500 rpm; 46 N·m @ 11,500 rpm
  • Single-sided aluminium swingarm
  • Dual 300 mm floating discs + 4-piston TAISKO calipers
  • Bosch EFI, wet multi-plate slipper clutch
  • 0-100 km/h in 3.4 s, top speed 235 km/h
  • 12.9:1 compression ratio, 800 mm seat height

Specifications

Displacement470 cc
Engine470cc inline-4, DOHC 16V, liquid-cooled
Max Power62 kW @ 13,500 rpm
Max Torque46 N·m @ 11,500 rpm
Top Speed235 km/h
0-100 km/h3.4 s
Kerb Weight168 kg
Seat Height8 mm
Fuel Capacity15 L
Compression12.9:1
Dimensions2005 × 705 × 1125
Wheelbase1395 mm
Front Brake2 × 300 mm floating discs, 4-piston TAISKO
Rear Brake240 mm disc
Front TyreCST S5 120/70-17
Rear TyreCST S5 180/55-17
Fuel SystemBosch EFI
ClutchWet multi-plate, slipper
USD 6,499
CNY 33,680

Two versions: single-sided swingarm (CNY 33,680) / double-sided (CNY 29,980)
